Crest Vertical Platform Lift

Product Review
(0)
(0)
The Company warrants to the original purchaser of the Vertical Platform Lift, manufactured by the Company, to be free from defects in material or workmanship during the Warranty Period defined as follows:
2 years for batteries
5 years for all other component parts
Lifetime for circuit board and motor/gear

Labor reimbursement is not covered by this warranty

If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.
Lifting Capacity750 lb
Standard Lift Height168"
Arrives AssembledYes
Drive SystemDual Winding Cable Drums with 3/8" Cables
Battery Powered OptionNo
Constant Pressure Platform ControlYes
Emergency Stop Platform ControlYes
Alarm ButtonYes
Call-Send ControlsRF Call/Send Station (1 per landing provided)
Optional Call-Send ControlsYes
Platform TypeNon-Skid
Platform Size36" x 48"
Optional Platform Sizes36"x54", 36"x60", 42"x54", 42"x60", Custom
Platform ConfigurationSingle Entry/Exit
Optional Platform ConfigurationsPass Through, 90 Degree
Guard Panel42"
Maximum Stops3
Lift Speed (FPM)15
PortableNo
Other OptionsEnclosure, Solar Battery Charger, Bluetooth Controller
Regular Price
Price$8,279.00
Free Shipping
Select Options
spacer
Add To Cart
spacer
The battery operated Crest Vertical Platform Lift provides faster travel and a smoother ride than most lifts. Its quieter operation is provided by the elevator cable drum drive which allows a lifting capacity of 750 lbs. Safe and reliable operation is assured by the 3/8" aircraft cable drive and a diagnostic indicator. The lift is AWS Certified, meets A18.1 Section 2 and 5 and is made in America.

Built from durable aluminum, it is corrosion resistant and lighter than most similar lifts. For locations not near electric mains, a solar charger for the battery is available as an option. A full enclosure is also available to keep the rider out of the elements.

Contact our Vertical Platform Lift experts to determine which configuration will best suit your needs.

Call for Shipping Cost.

NOTE:
Delivery only to a freight terminal or commercial site with a dock and forklift on site.
click to enlarge picture
  • Crest Vertical Platform Lift
  • Exiting Top Level

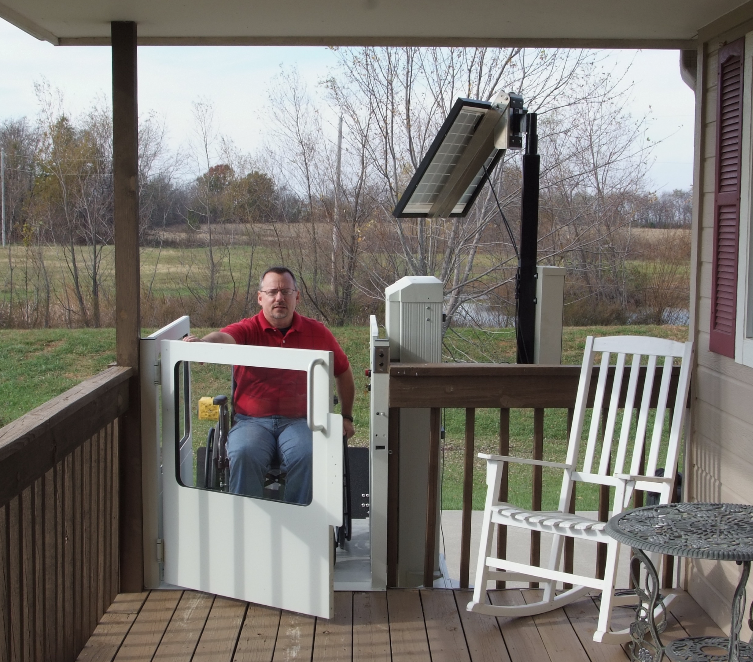

  • With Optional Solar Charger

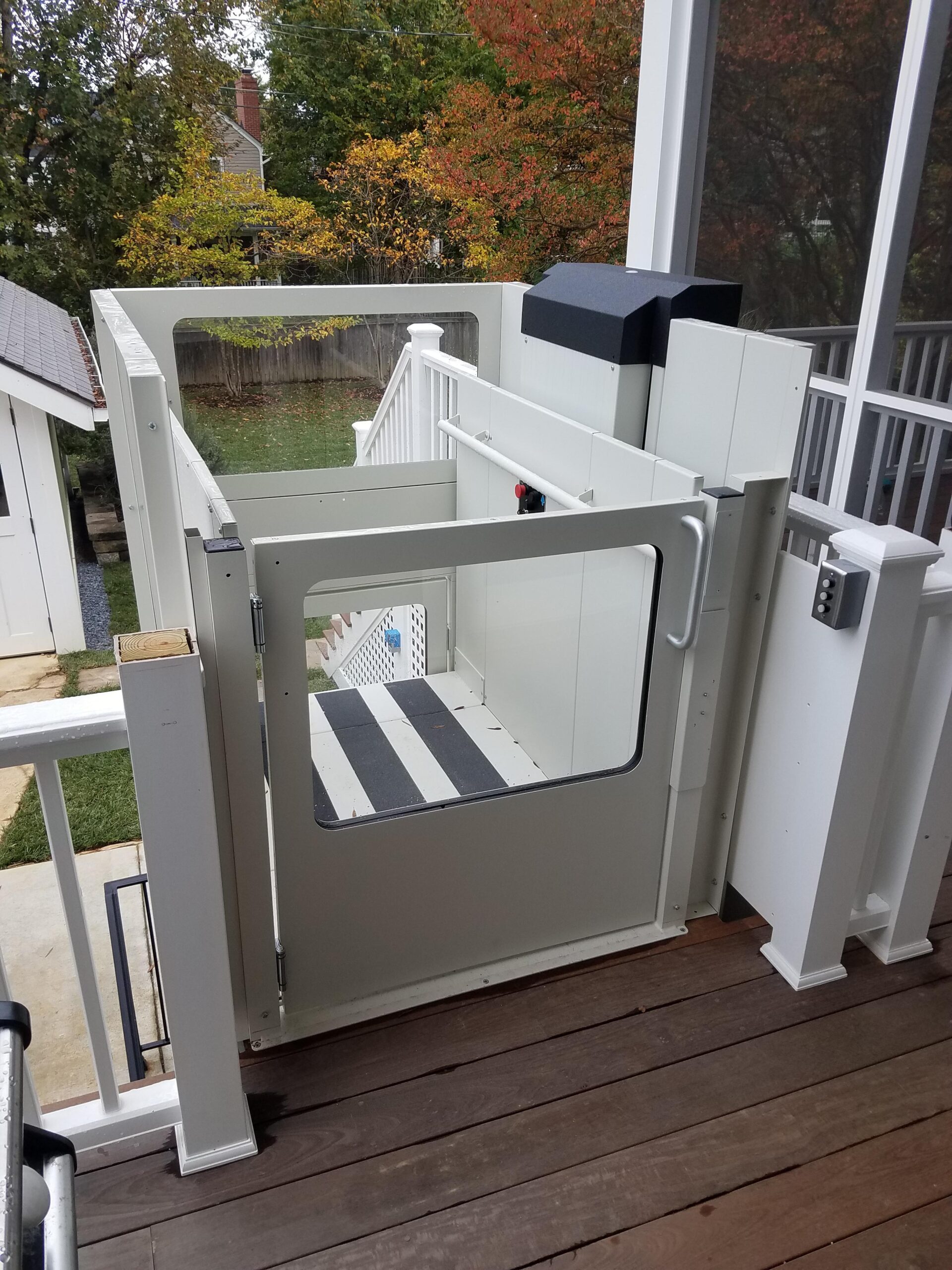

  • With Optional Enclosure Bottom Level
  • With Optional Enclosure Top Level
